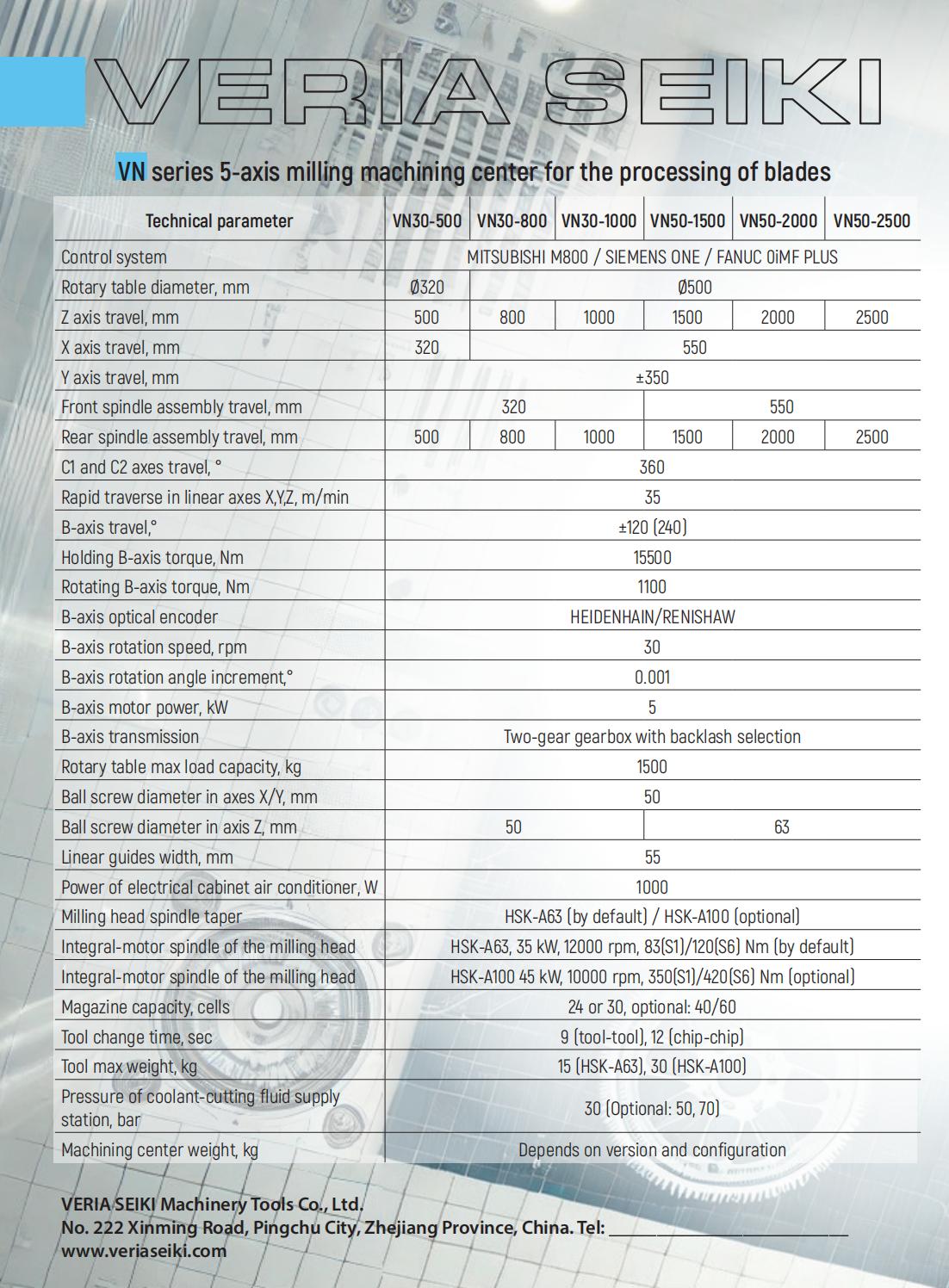

VN series 5-axis milling machining center for the processing of
blades
|
|
Technical parameter
|
VN30-500
|
VN30-800
|
VN30-1000
|
VN50-1500
|
VN50-2000
|
VN50-2500
|
|

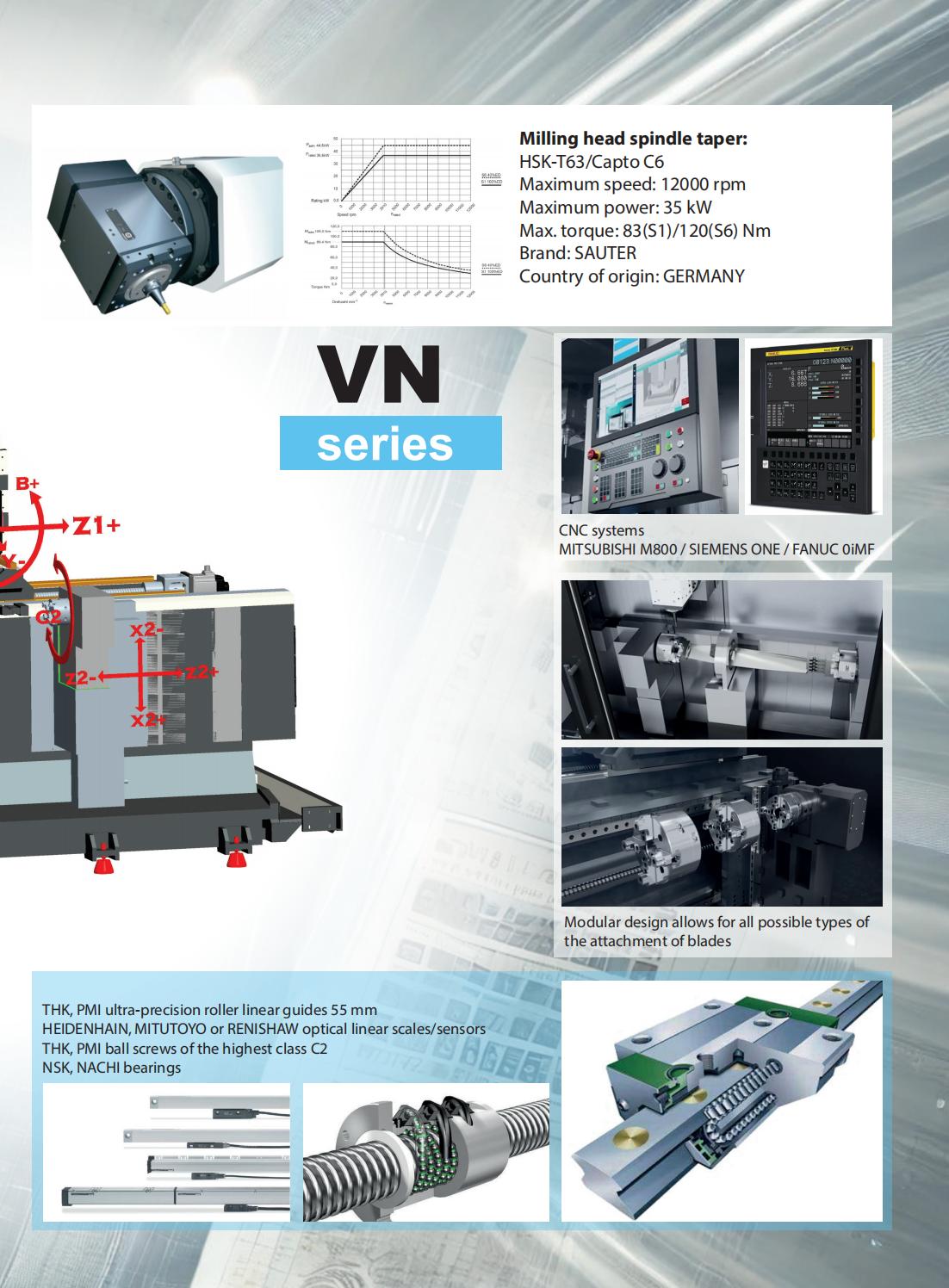

Control system
|
MITSUBISHI M800 / SIEMENS ONE / FANUC 0iMF PLUS
|
|
Rotary table diameter, mm
|
Ø320
|
Ø500
|
|
Table working surface, mm
|
500
|
800
|
1000
|
1500
|
2000
|
2500
|
|
X axis travel, mm
|
320
|
550
|
|
Y axis travel, mm
|
±350
|
|
Front spindle assembly
travel, mm
|
320
|
550
|
|
Rear spindle assembly
travel, mm
|
500
|
800
|
1000
|
1500
|
2000
|
2500
|
|
C1 and C2 axes travel, °
|
360
|
|
Rapid traverse in linear
axes X,Y,Z, m/min
|
35
|
|
B-axis travel,°
|
±120 (240)
|
|
Holding B-axis torque, Nm
|
15500
|
|
Rotating B-axis torque, Nm
|
1100
|
|
B-axis optical encoder
|
HEIDENHAIN/RENISHA
|
|
B-axis rotation speed, rpm
|
30
|
|
B-axis rotation angle
increment,°
|
0.001
|
|
B-axis motor power, kW
|
5
|
|
B-axis transmission
|
Two-gear gearbox with backlash selection
|
|
Rotary table max load
capacity, kg
|
1500
|
|
Ball screw diameter in axes
X/Y, mm
|
50
|
|
Ball screw diameter in axis
Z, mm
|
50
|
63
|
|
Linear guides width, mm
|
55
|
|
Power of electrical cabinet
air conditioner, W
|
1000
|
|

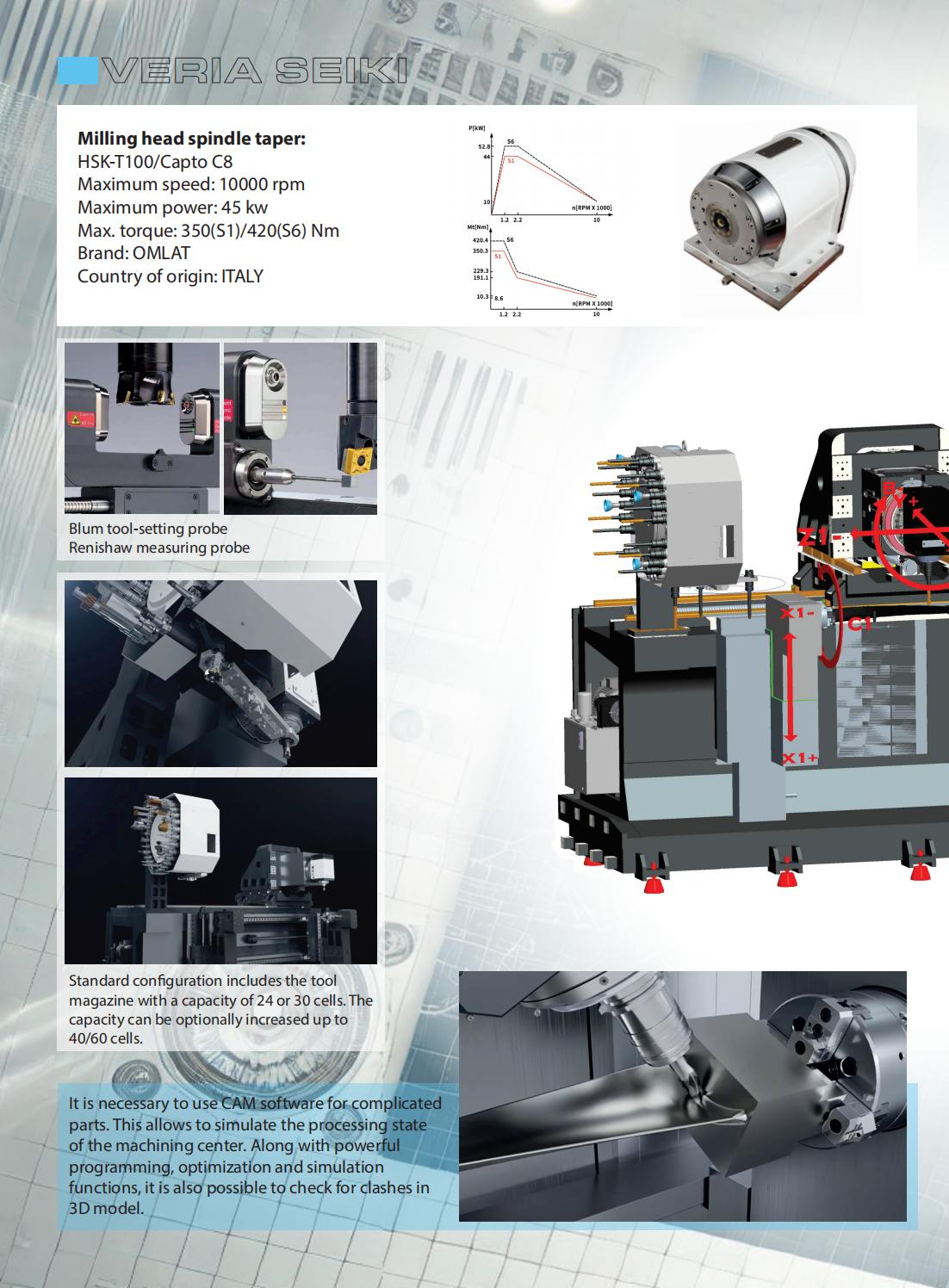

Milling head spindle taper
|
HSK-A63 (by default) / HSK-A100 (optional)
|
|
Integral-motor spindle of
the milling head
|
HSK-A63, 35 kW, 12000 rpm, 83(S1)/120(S6)
Nm (by default)
|
|
HSK-A100 45 kW, 10000 rpm, 350(S1)/420(S6) Nm
(optional)
|
|
Magazine capacity, cells
|
24 or 30, optional: 40/60
|
|
Tool change time, sec
|
9 (tool-tool), 12 (chip-chip)
|
|
Tool max weight, kg
|
15
(HSK-A63), 30 (HSK-A100)
|
|
Pressure of coolant-cutting
fluid supply station, bar
|
30 (Optional: 50, 70)
|
|
Machining center weight, kg
|
Depends on version and configuration
|
