1. The machine adopts double spindle, double C-axis, single turret, single Y-axis, powerful and excellent performance, and the function of the machine tool is extremely powerful.

2. Because of the good stability and rigidity of the machine tool, the tool life is long, for example, the tool life is increased to 38% compared with the early machine tool.

3. The diameter of the X-axis screw reaches 40mm, and the large-diameter screw ensures the precision and service life of the machine tool under long-term high-speed operation.

4. P-class 35mm roller guide rail is used to ensure the long-term high-efficiency heavy-duty machining task of the machine tool

5. VA series small machine tool is driven by electric spindle, which has fast response speed, low failure rate and easy maintenance. Large machine tools use mechanical spindles.

6. The standard configuration of 20 bar high pressure system ensures that the machine tool can easily cope with deep holes. (40 Bar High Voltage System Option is available).

7. The standard configuration of the automatic material receiving hand makes the processing task completed, and the material receiving hand will automatically take it out and put it in the finished product box. Truly unmanned processing.

     VA series is a small/medium/large turning compound center launched by Veriaseiki, this model of machine has been sold hundreds of units since its launch on the market, VA has emphasized the high rigidity of the machine tool since its launch, high precision turning and milling compound machining. Its high stability processing has been praised by a wide range of customers.

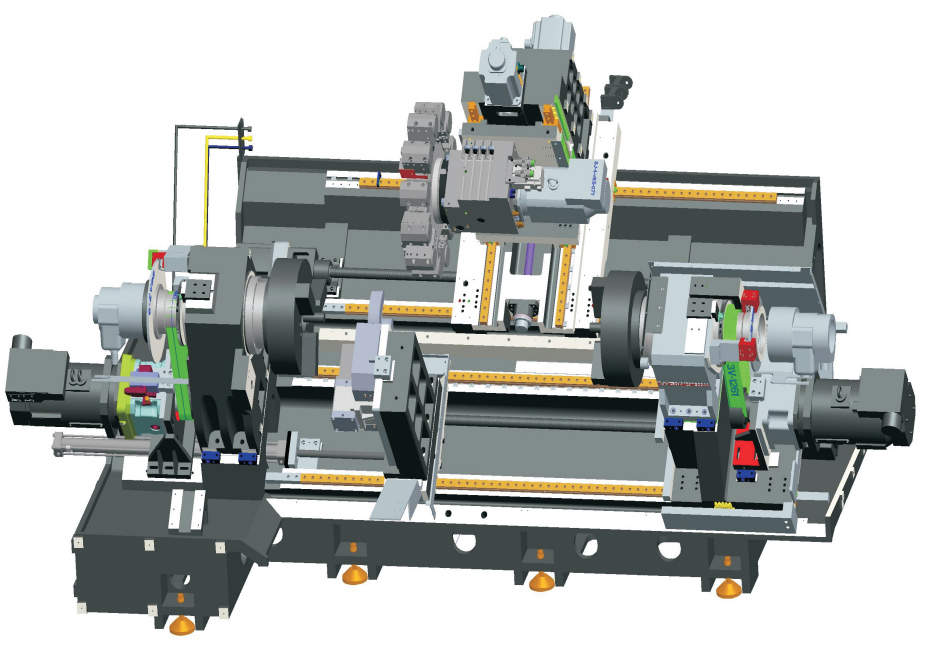

     Push VA series is our positioning of the mid-end mass production machine tools, flexible configuration suitable for different scales, different industries of enterprises to use, whether it is small parts processing, or large parts processing, VA series can be met, VA series can not only be produced alone, but also can use bar wire processing to improve efficiency, VA as a full-featured design scheme with 2 spindles and 1 turret Y-axis, Each axis adopts 35 roller guide rails to ensure the high rigidity of the machine tool, including good dynamic response and high-strength base shock absorption, At the same time, it also brings longer tool life, improves the surface finish of parts, and reduces workpiece cycle time and machining time.


  VA series adopts A4/A5/A6 to achieve all electric spindles, the spindle constant temperature adopts a special spindle oil cooling spindle to ensure that the spindle is fully cooled at high speed, and the thermal elongation is effectively controlled. VA series can carry out cooling management for the spindle and cutting fluid at the same time, effectively shorten and reduce the temperature gap between the machine tool and the factory space, shorten the change time of the cold and hot machine, improve the product qualification rate, and achieve the production of high-quality workpieces is the direction we have been working towards.

1.The VA series is the most fully developed model of Deshang Precision Machinery, covering 80% of the market demand for horizontal lathes.

2. Bar diameter, standard configuration between Φ30mm / Φ42mm / Φ52mm / Φ65mm, depending on the size of the spindle.

3. It is equipped with one high-power spindle as standard, and the 30, 42 and 52 types can be equipped with electric spindles, and the 65 type spindle is equipped with a mechanical spindle as standard.

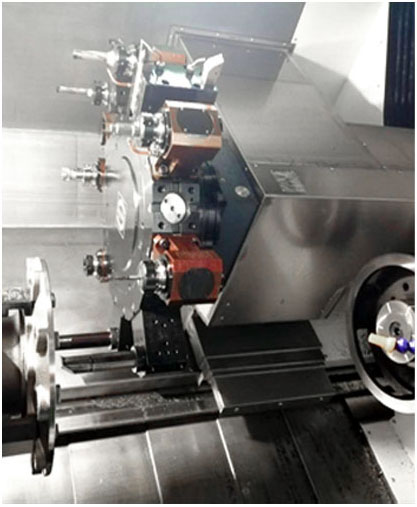

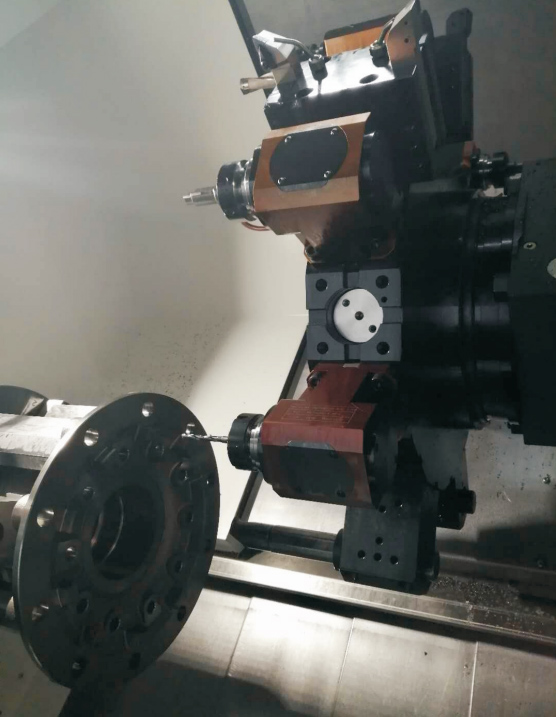

4. The VA-300/500/800 series adopts BMT-45-16T servo-driven turret, which can be installed with 16 different tools.

5.VA-1250 and VA-1500 large machine tools use BMT-65-12T heavy-duty servo-driven turret.

6. VA-1250 and VA-1500 can be installed with an optional steady rest.

7. The full range of spindles can be selected from 5", 6", 8", 10", 12", 15", 20" inch chucks (Chuck & Spindlie Option).

8.High speed movement, VA-300/500/800 is 45 meters, (VA-1250 and motor spindle high speed response, C-axis indexing 0.001mm.)

9.High-quality, high-efficiency back machining, reducing multiple clamping brings workpiece accuracy

10.Simultaneous rotation and docking of double spindles, fast rotation and positioning of double C-axis, and high-rigidity milling are the standard of VA

11.vs standard system with Japan's Mitsubishi M80, supporting all ultra-precision turning and milling functions except the five axes.
